Magnum

Large-area modular forming system optimized for crane-equipped sites.

Versatile

fast to erect

Easy to Move

About Magnum

  • The Magnum forming system features large-area panels measuring 7' 10 ½" x 9' 10" (~80 sq. ft) that can be used both vertically and horizontally.
  • Engineered for efficiency, the system requires only 2 ties per panel joint and 2 aligning clamps, with a maximum pour pressure of 1,250 lbs. per sq. ft.

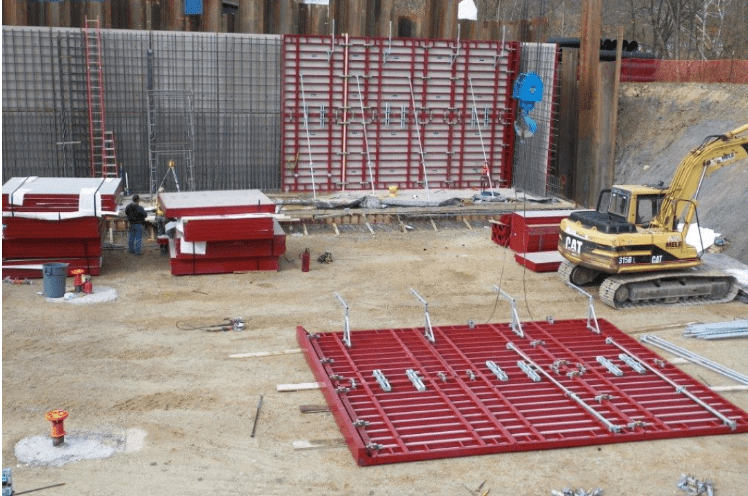

  • The complete system includes push-pull props, working brackets, and high strength reusable ties for optimal performance, with panels that can be assembled either flat or standing.
  • Compatible with both Circa-Flex and Dura-Clamp systems, Magnum is ideal for sites with lifting equipment available, significantly reducing labor requirements.

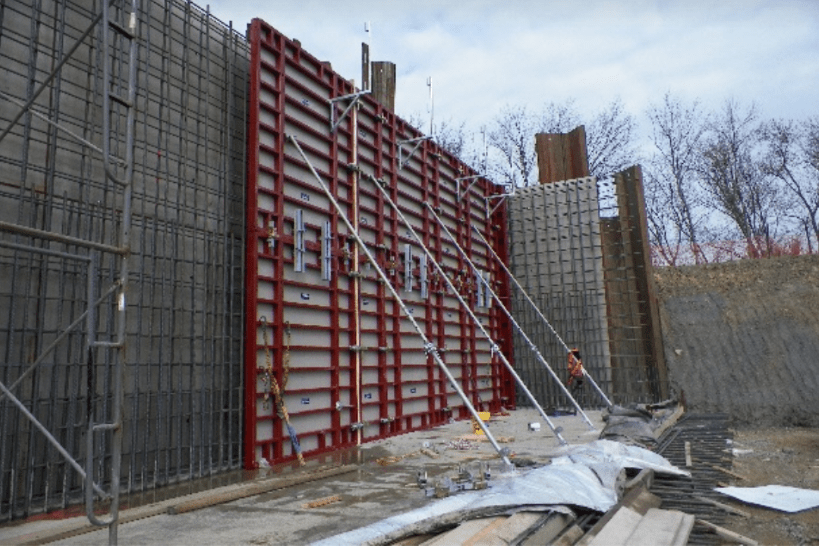

Magnum formwork on a high-rise construction site

Product Specifications

  • Heavy-duty steel frame construction
  • High-density overlay plywood face for superior finish
  • Concrete pressure rating up to 2,000 psf
  • Panel sizes up to 8' x 24'
  • Integrated lifting points for crane handling
  • Compatible with self-climbing systems for high-rise construction
  • Engineered for multiple reuse cycles
